PHLEBO PRESS® DVT
DVT, or deep vein thrombosis, is the formation and release of blood clots (thrombi) inside the deep veins, most often in the legs. PE (pulmonary embolism) occurs when one of these thrombi becomes lodged in the lungs. Together, these conditions are referred to as VTE, or venous thromboembolism. DVT can cause significant, crippling damage. PE is a life-threatening event.
A primary cause of DVT is immobility during and after surgery, and during hospitalization. The muscles used in walking press on the veins in the legs, pumping blood towards the heart. Without this activity, blood flow slows.
DVT Prevention
Methods to prevent DVT include clot-preventing drugs, pneumatic compression, anti-embolism stockings, and early ambulation.
Pneumatic compression
Pneumatic compression, also called IPC (intermittent pneumatic compression) or SPC (sequential pneumatic compression) is effective and inexpensive, with very few adverse effects.
It can be used in patients at risk of bleeding, or in combination with pharmaceutical prophylaxis.
Phlebo Press ® DVT offers the most advanced pneumatic compression systems, with its unique features and innovative sleeves, for effective, easy and comfortable use !

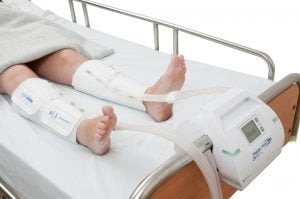

Phlebo Press® DVT uses air and a soft, conforming, inflatable garment (“sleeve”) to apply compression to the leg. This replicates the action of walking and increases blood flow in the deep veins of the legs. The pump is used until the patient is ambulatory or according to physician orders.
Phlebo Press® DVT systems deliver the "gold standard" of pneumatic compression therapy-gradient, sequential, circumferential compression – with precise, calibrated pressure profiles and timings that have been clinically proven most effective for maximum increase of venous blood flow volume and velocity in the deep veins of the legs. A variety of garment configurations are available: thigh length, knee length, foot only, and our proprietary foot-calf design.
DVT and PE can both be effectively treated, but prevention is by far the best method of defense.
Phlebo Press® DVT Indications:
Phlebo Press® DVT is prescribed to help prevent deep vein thrombosis in patients who may be susceptible.
Cautions and Warnings:
- Exercise caution when using on patients whose extremities are insensitive to pain.
- If patient experiences pain, tingling or numbness in the treated area, stop treatment, remove the sleeves and notify the supervising physician.
- This device is for sale and use by, or on the order of, a physician.
Phlebo Press® DVT Contraindications:
Do not use the Phlebo Press® DVT in the presence of the following conditions:
- Known or suspected Deep Vein Thrombosis, congestive heart failure, pulmonary edema, thrombophlebitis, severe arteriosclerosis, or active infections
- In the presence of any sudden pain or numbness
- On extremities that are not sensitive to pain
- Vein ligation or other ischemic vascular diseases
- When increased venous or lymphatic return is undesirable
- Extreme deformity of the limbs
- Gangrene, recent skin grafts, dermatitis
Phlebo Press® Models
- One button operation: Phlebo Press® DVT All in One automatically identifies connected garments and assigns the optimal pressure and timings. No adjustment or selection needed! Phlebo Press® DVT Model 603 offers single pressure, on/off operation.
- Easy monitoring: Side lights allow staff to observe system function without disturbing the patient.
- Long lasting battery: For off-mains use and patient transfers.
- Over the rail design: Saves space and maintains visibility.
- Side hose connection: Prevents pressure points and skin breakdown.
- Universal sizing: No need to measure - one standard size fits most, with additional sizes available for special needs.
- Exceptionally soft, light, airy and conforming garments feel great against the skin.
- Ventilated design to reduce perspiration.
- Quiet operation and a smooth, pleasant massage action.
Studies show that patient acceptance is important for successful adherence to the hospital DVT prevention protocol. Phlebo Press® DVT garments are made using our proprietary methods and materials, to deliver comfortable, patient-friendly treatment.

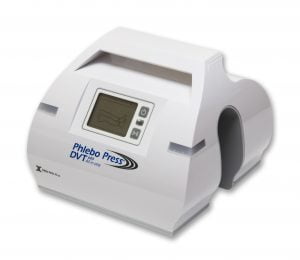

Phlebo Press® DVT 603 All in One
Phlebo Press® DVT All in One (Model 603) was designed with input from nurses from three major USA hospital systems (Nurses’ Study, 2013), and features one-touch operation, with automatic garment recognition and application of physiologically optimum timing and pressure. The All in One console operates sequential or single chamber garments.
| Model | Phlebo Press® DVT , model 603 |
|---|---|
| Cycle | Sequential and intermittent |
| Pressure Range | 45 mmHg and /or 130 mmHg |
| Weight | 2.5 Kg |
| Dimensions | 17.6 cm X 22.7cm X 19.7 cm |
| Electrical | 90-264 VAC 47-63 Hz |
- Just press START ! No further adjustments required.
- Automatic single/dual garment recognition
- Side lights for easy monitoring; audio and visual alarms
- Long battery life for off-main operations
- Space saving design fits over bed rail

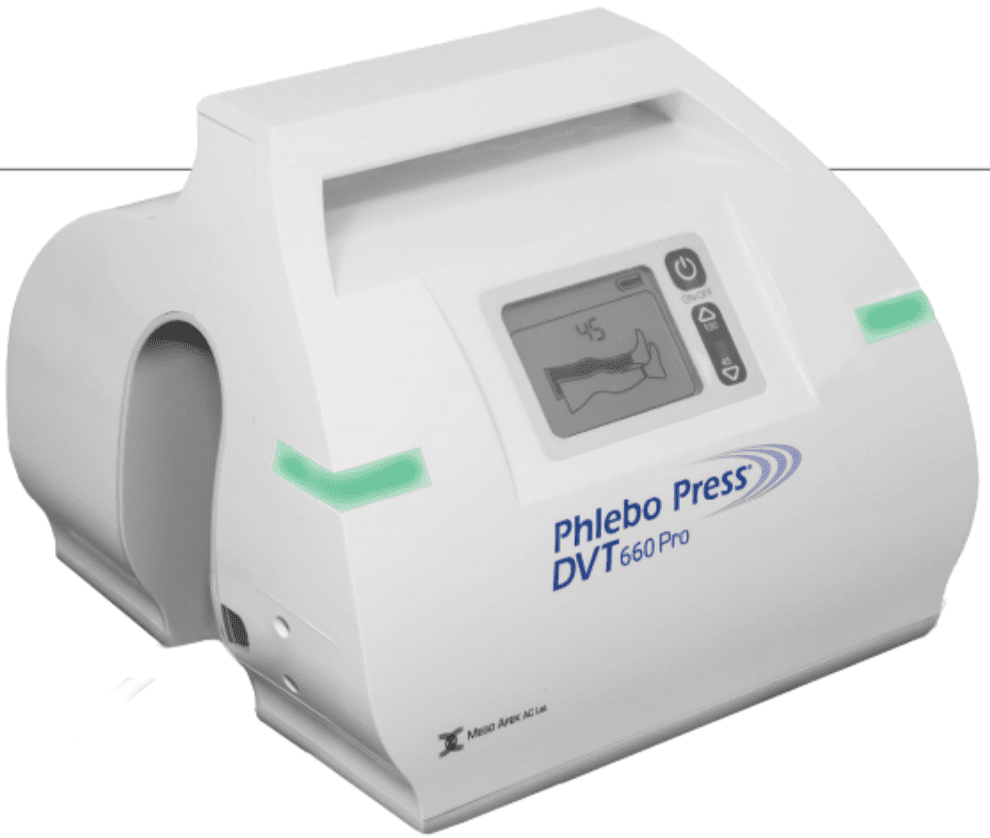

Phlebo Press® DVT 660 Pro
Phlebo Press® DVT 660 Pro is simple to operate, with automated features that delivers individualized treatment. Four chambers sequential, circumferential gradient compression increases the speed and volume of blood flow in the deep veins of the legs, to prevent deep vein thrombosis in patients who are susceptible.
| Model | Phlebo Press® DVT , model 660 Pro |
|---|---|
| Cycle | Sequential |
| Pressure Range | 45 mmHg |
| Weight | 2.0 Kg |
| Dimensions | 17.6 cm X 22.7cm X 19.7 cm |
| Electrical | 90-264 VAC 47-63 Hz |
Features:
- Easy to use
- Battery power for up to 12 hours of use with thigh length garments, and up to 20 hours of use with knee length garments,
- Multi-voltage
- Choice of single patient use garments for short term use, or durable fabric garments for long term care

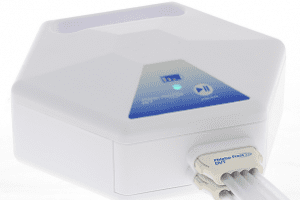

Phlebo Press® DVT 760D
Phlebo Press® DVT 760D is a convenient, low-profile and cost effective system that provides excellent performance. It applies circumferential, sequential gradient compression when used with Phlebo Press® DVT four chamber garments, and applies uniform, intermittent compression when used with Phlebo Press® DVT single chamber garments. It can operate for extended periods of time using battery power, and is multi voltage, making it convenient for travel.
| Model | Phlebo Press® DVT 760D |
|---|---|
| Cycle | Sequential , Intermittent |
| Pressure Range | 45 mmHg |
| Weight | 1 Kg |
| Dimensions | 22 cm×20cm×9.5 cm |
| Electrical | 100-240 VAC, 50-60 Hz |
Phlebo Press® DVT garments include sequential (four chamber) and intermittent (single chamber) knee length, thigh length, foot and our unique foot-calf garment.
We offer a variety of sizes, including bariatric, and choice of single-patient short-term use as well as durable, cleanable nylon fabric sleeves for long term use.
The sleeves maximize treatment and comfort.
- Exceptionally soft and comfortable.
- Side hose connection prevents pressure points and skin breakdown.
- Breathable, ventilated sleeves made from proprietary materials reduce perspiration.
Phlebo Press DVT ® single patient use garments line includes a choice of intermittent (single) and sequential (four chamber) knee-length , thigh length, and our unique foot-calf sleeve.

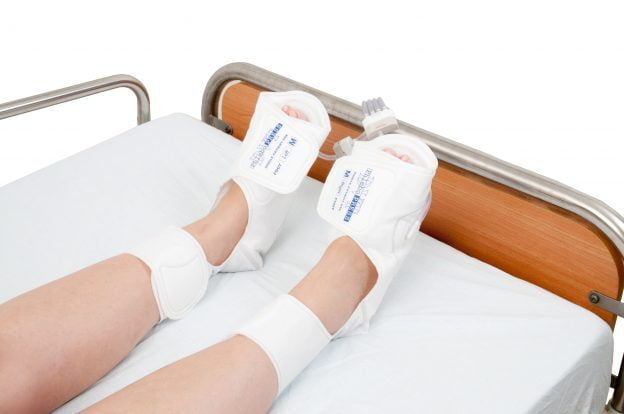

Intermittent foot sleeve – Model 603 only

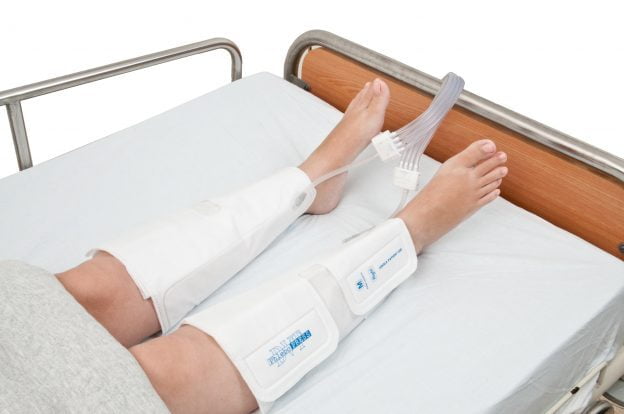

Intermittent Knee high

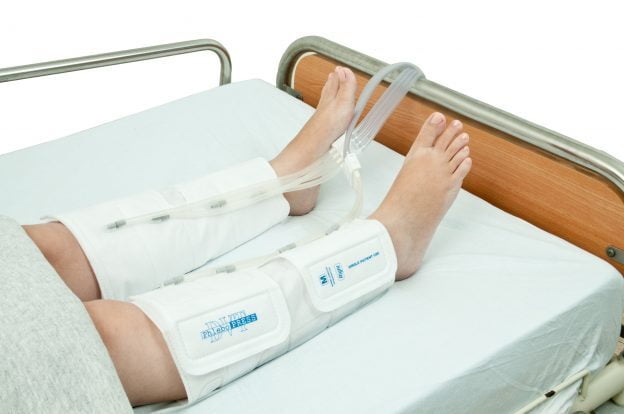

Sequential Knee high

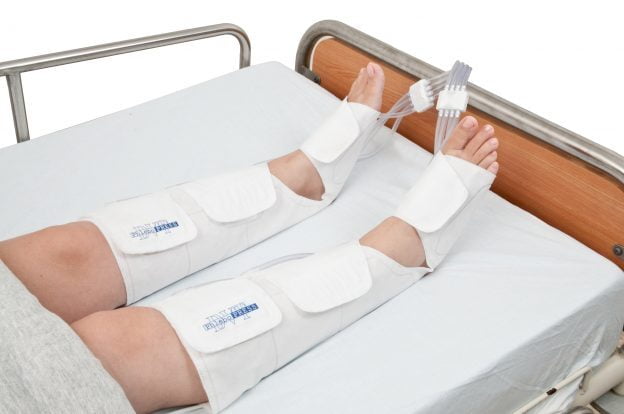

Sequential Foot- calf

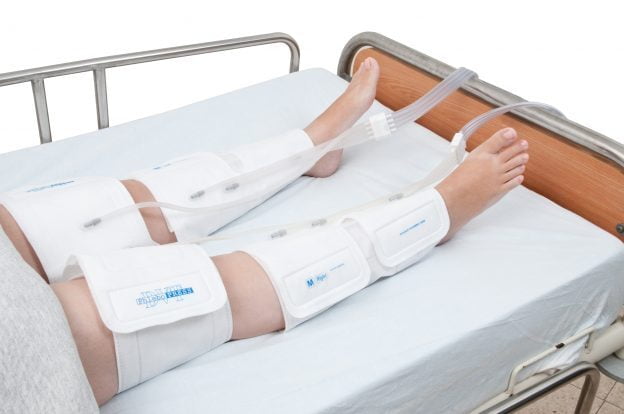

Sequential thigh high
Phlebo Press DVT ® durable sleeves for long-term use line includes sequential ( four chamber) knee-high and our unique foot-calf sleeve.

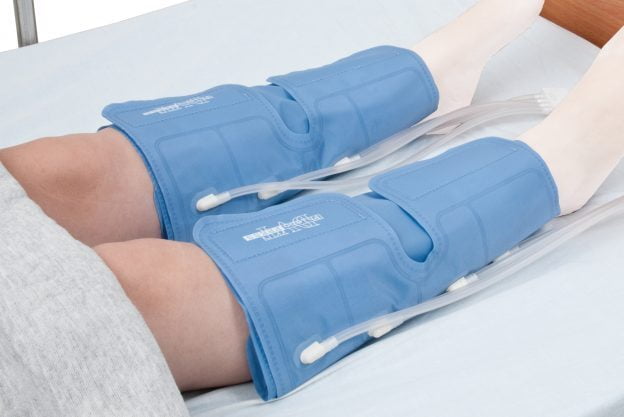

Sequential Knee high

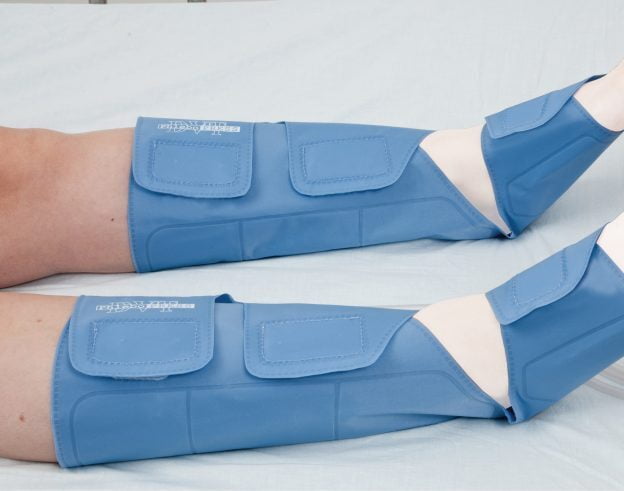

Sequential foot-calf
