  • HOVER®

    Alternating Pressure Redistribution  System for treatment of all stages of Pressure Ulcers

Pressure Ulcer

Pressure ulcers, also known as decubitus  sores or bed sores, are localized injury to the skin and/or underlying tissue usually over a bony prominence, as a result of pressure, or pressure in combination with friction or shear.



Risk factors

  • Pressure Ulcers develop primarily in elderly patients.
  • The likelihood of developing ulcer is directly proportional to the duration of hospitalization in intensive / critical care unit.
  • Lack of pain perception, natural thinness and weight loss leading to aging skin, malnutrition, urinary or fecal incontinence are a few other major risk factors.


Stages of Pressure Ulcer

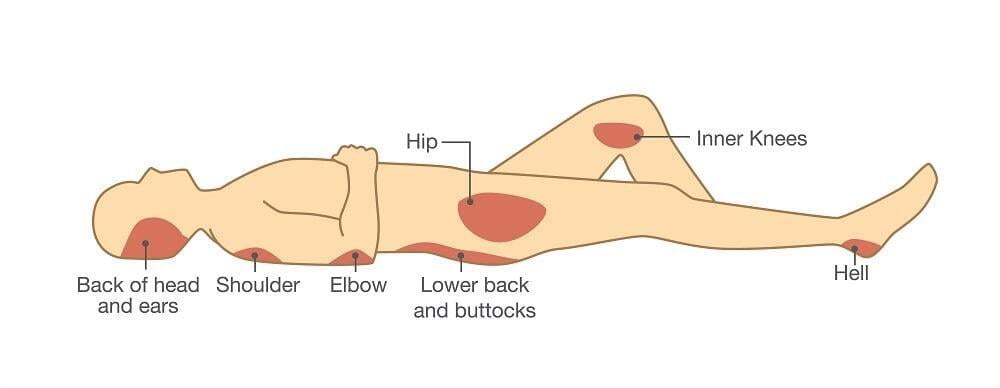

Commonly affected area

The most common sites are the skin overlying the sacrum, coccyx, heels, and hips, though other sites can be affected, such as the elbows, knees, ankles, back of shoulders, or the back of the cranium

Prevention and Treatment

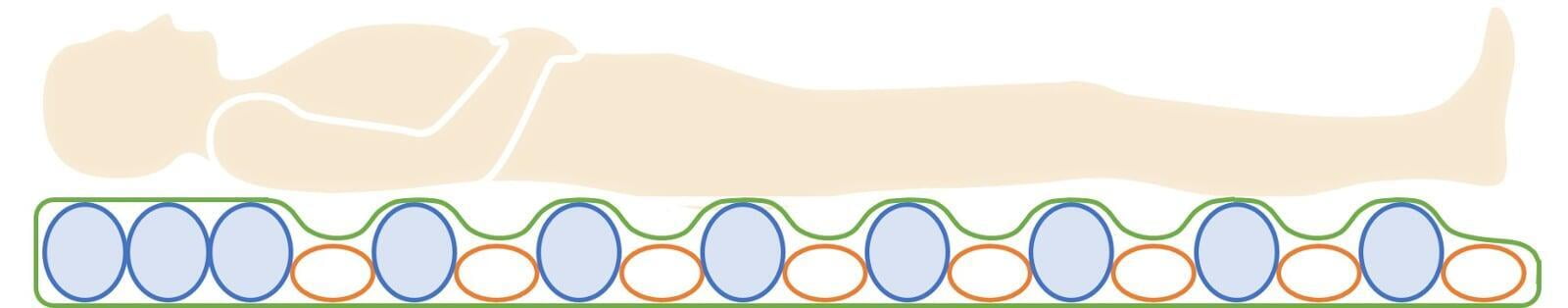

  • Alternating Pressure Redistribution System: Alternates inflation and deflation of cells to constantly change pressure points and promote circulation. A single cell slowly deflates, re-inflates, and then the adjacent cell does the same, slowly, up and down the mattress.
HOVER® is a microprocessor controlled high performance alternating pressure redistribution system that provide dynamic support for prevention of Stage-1 to Stage-4 pressure injuries & to reduce the risk of infection in critically ill & immobile patients

HOVER® consists of a System Controller, paired with either a 5" or 6" overlay (pleased on top of existing mattress) or a 8" replacement (placed directly on top of cot without mattress) Mattress

Our high performance

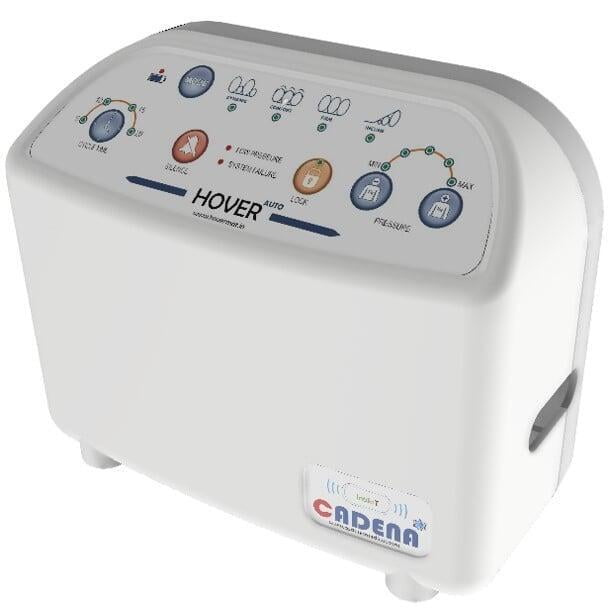

​HOVER
® SYSTEM CONTROLLER

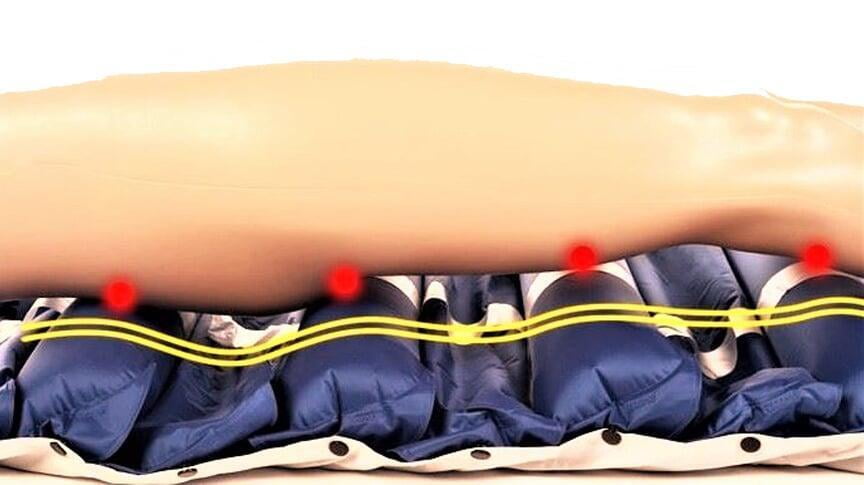

Monitors and adjusts real-time internal pressure between the mattress and body to ensure the effectiveness of pressure redistribution to offload the pressure occurring in deep tissue. While fully automatic modes ensure less care-giver intervention, manual overrides are available to fine tune the system to individual patient need.

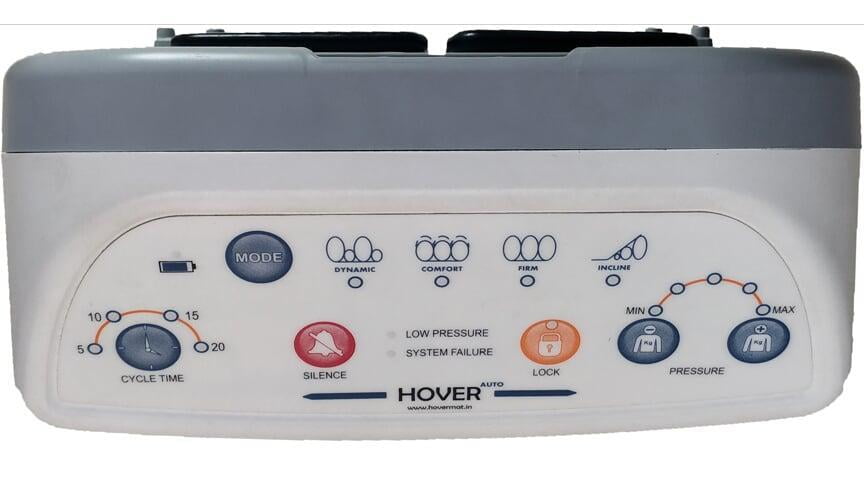

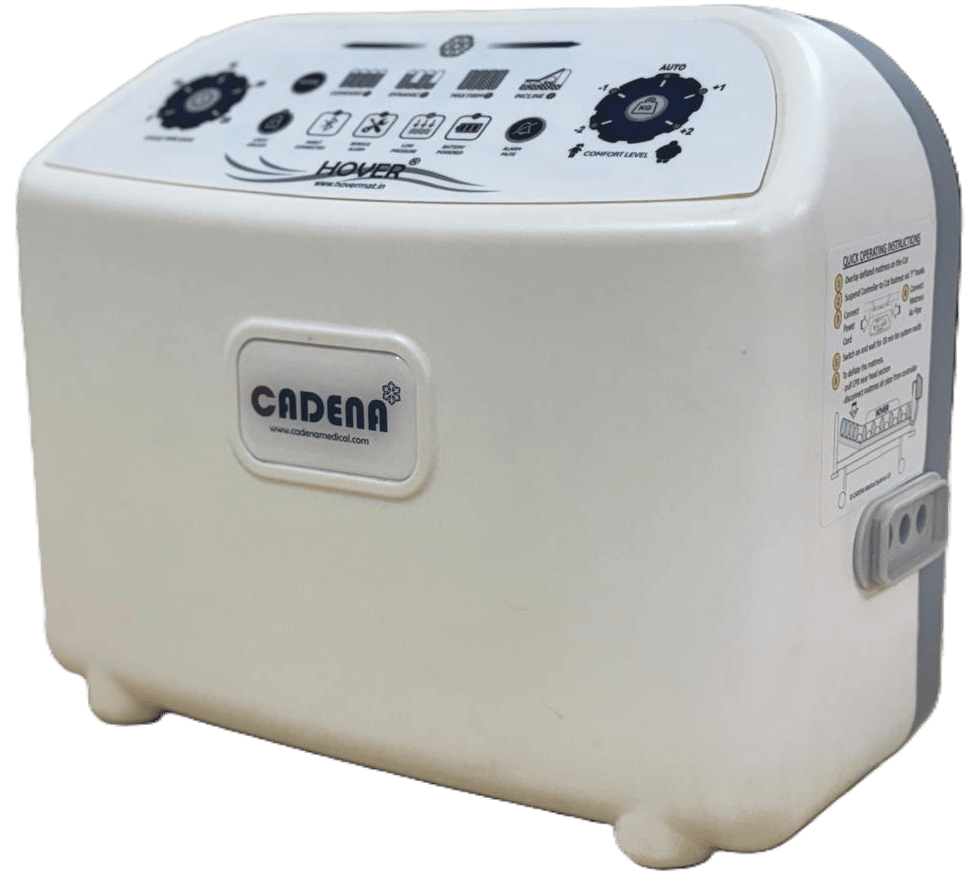

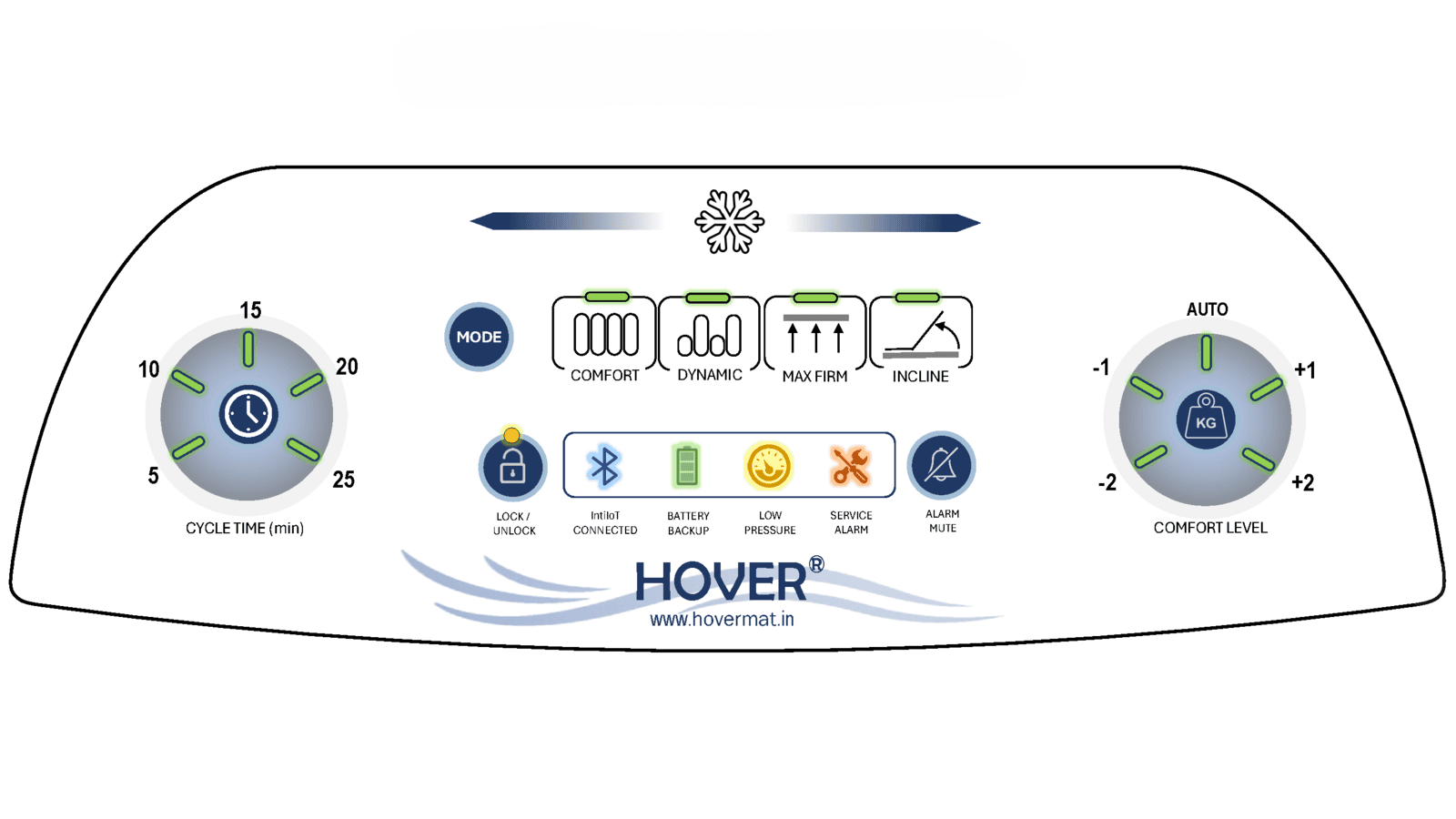

HOVER AUTO / IntiIoT
HOVER MAX

Features

Fully digital SCU with IOT*
One of the most advanced microprocessor controller fully digital controller with IOT* expansion capabilities (* on Demand)
Fully automatic / manual override

The controller sets the optimum pressure based on patients weight and posture. It has manual overrides for cycle time and pressure.

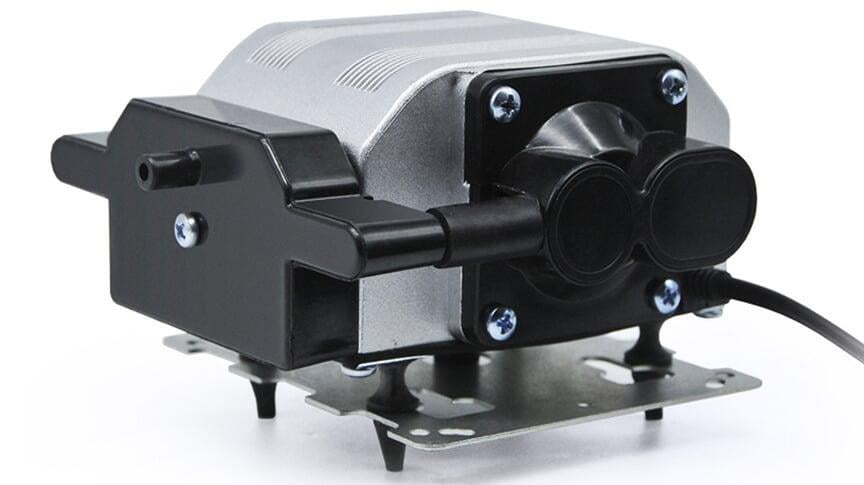

High Flow silent pump

A high capacity ~ 17 LPM pump ensures faster initial inflation. High flow pump provides more effective pressure offloading and low air loss

Our high durability
​HOVER
® MAT Mattress

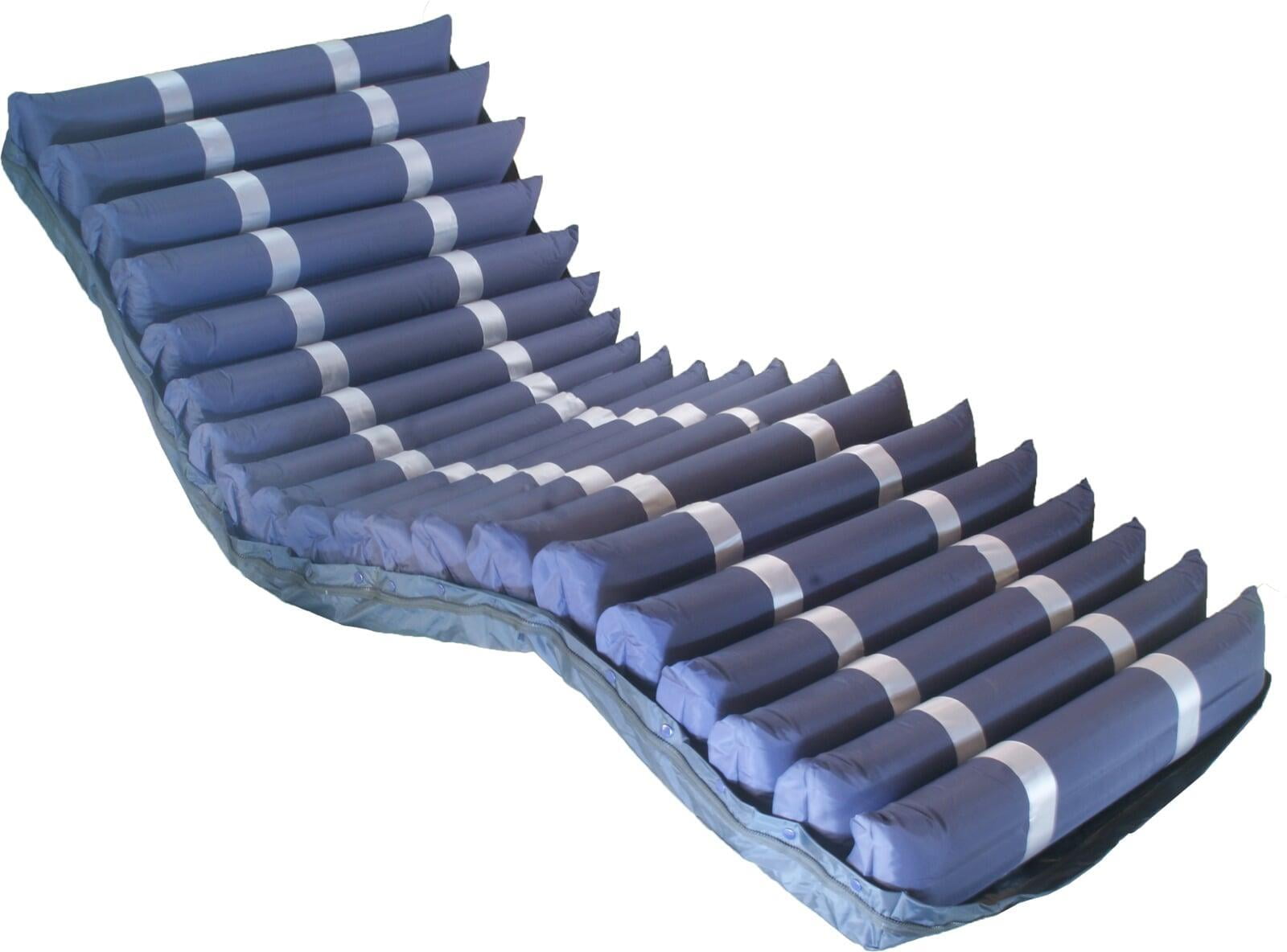

Available in 5" overlay or 6” Retainer Air Cell (RAC) or 8” replacement Cell-on-Cell (CoC) mattress, it is designed to support patients up to 250 kg and provides the best possible pressure redistribution for all patient types in all stages of tissue damage.

Features

Alternating Replaceable Cells
Each mattress have 16 to 22 cells which alternate in 1-in-2 mode to provide pressure offloading. Top 3 head cells have static pillow function.

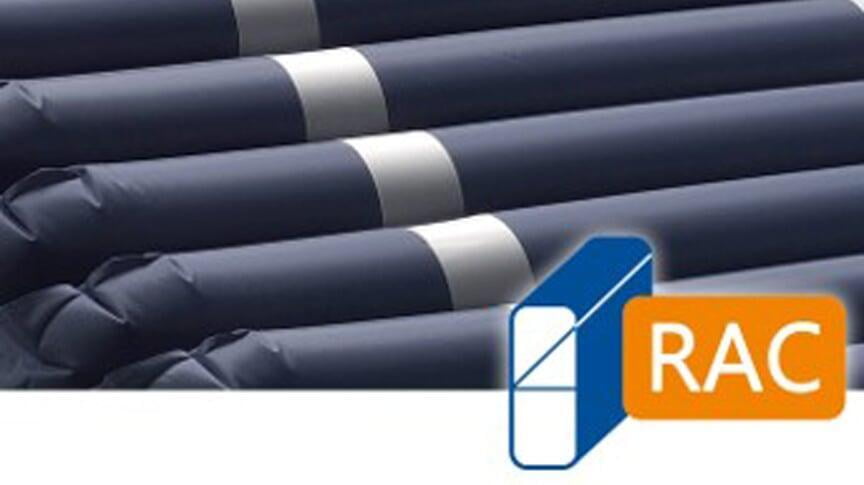

Retainer Air Cell / Cell on Cell

Each cell has patented retainer walls to provide additional stiffness. Cell on Cell avoids bottoming out in case of power failure or leakage.

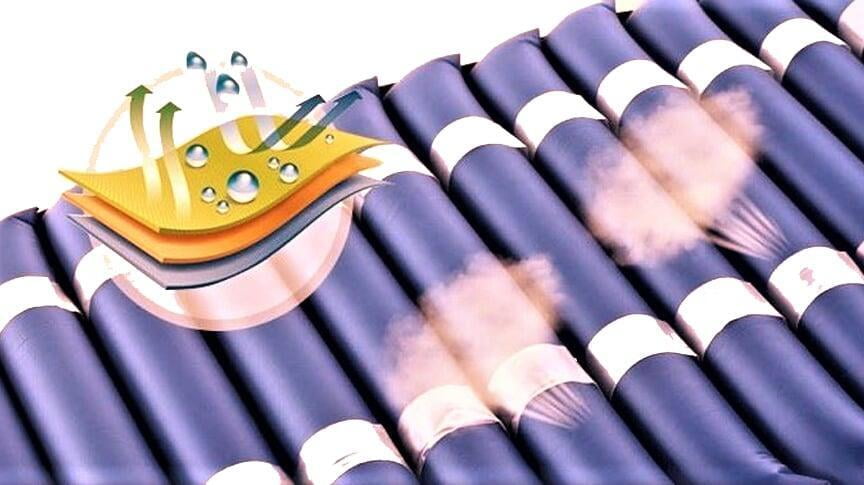

Low Air Loss Technology

Slowly venting out the air from the mattress allows maintaining a dry micro climate below the patient, enabling faster healing.

For detailed information on HOVER®, please visit our microsite
